7.4.1.2 Packet Tracer – Skills Integration Challenge
Packet Tracer – Skills Integration Challenge (Answer Version)
Answer Note: Red font color or gray highlights indicate text that appears in the Answer copy only.

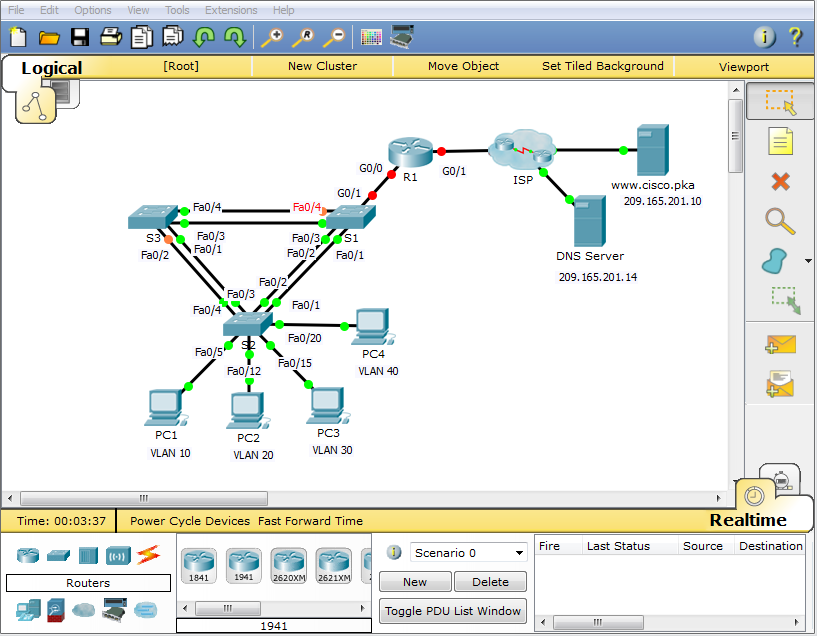

Topology
7.4.1.2 Packet Tracer – Skills Integration Challenge
Addressing Table
| Device | Interface | IPv4 Address | Subnet Mask | Default Gateway |
| IPv6 Address/Prefix | ||||
| R1 | G0/0 | 172.16.10.1 | 255.255.255.192 | N/A |
| 2001:DB8:CAFE:1::1/64 | N/A | |||
| G0/1 | 172.16.10.65 | 255.255.255.192 | N/A | |
| 2001:DB8:CAFE:2::1/64 | N/A | |||
| Link-local | FE80::1 | N/A | ||
| S1 | VLAN1 | 172.16.10.62 | 255.255.255.192 | 172.16.10.1 |
| S2 | VLAN1 | 172.16.10.126 | 255.255.255.192 | 172.16.10.65 |
| ManagerA | NIC | 172.16.10.3 | 255.255.255.192 | 172.16.10.1 |
| 2001:DB8:CAFE:1::3/64 | FE80::1 | |||
| Accounting.pka | NIC | 172.16.10.2 | 255.255.255.192 | 172.16.10.1 |
| 2001:DB8:CAFE:1::2/64 | FE80::1 | |||
| ManagerB | NIC | 172.16.10.67 | 255.255.255.192 | 172.16.10.65 |
| 2001:DB8:CAFE:2::3/64 | FE80::1 | |||
| Website.pka | NIC | 172.16.10.66 | 255.255.255.192 | 172.16.10.65 |
| 2001:DB8:CAFE:2::2/64 | FE80::1 | |||
Scenario
Your company has won a contract to set up a small network for a restaurant owner. There are two restaurants near each other, and they all share one connection. The equipment and cabling is installed and the network administrator has designed the implementation plan. Your job is to implement the rest of the addressing scheme according to the abbreviated Addressing Table and verify connectivity.
Requirements
8.4 1.2 Packet Tracer Skills Integration Challenge
- Complete the Addressing Table documentation.
- Configure R1 with IPv4 and IPv6 addressing.
- Configure S1 with IPv4 addressing. S2 is already configured.
- Configure ManagerA with IPv4 and IPv6 addressing. The rest of the clients are already configured.
- Verify connectivity. All clients should be able to ping each other and access the websites on Accounting.pka and Website.pka.
Suggested Scoring Rubric
Packet Tracer Skills Integration Challenge 8.4 1.2 Pack
Packet Tracer scores 80 points. Completing the Addressing Table is worth 20 points.
